Features :

• High resolution, sharp image
• Advanced technology of micro-electronics, Digital Scanning Converter (DSC), Variable Aperture, Multi-section Dynamic Focusing, high dynamic, lownoise, wide band pre-amplifier, log compression, TGC control, dynamic filtering, edge enhancement and frame correlation etc.
• Real-time image display, image freezing, amplifying, black- white reversing, up and down conversing, and upgrading in depth
• Standard PAL-D and VGA video output
• Build-in color coding module
• General gain control, near field and far field (T.G.C) control, brightness and contrast adjustment
• Foldaway keyboard and trackball ensure fast, convenient and flexible operation
• 186 frames of Cine-loop and 32 frames of permanent storage
• USB 2.0 interface ensures real-time image transfer to PC
• CE certified

Configurations

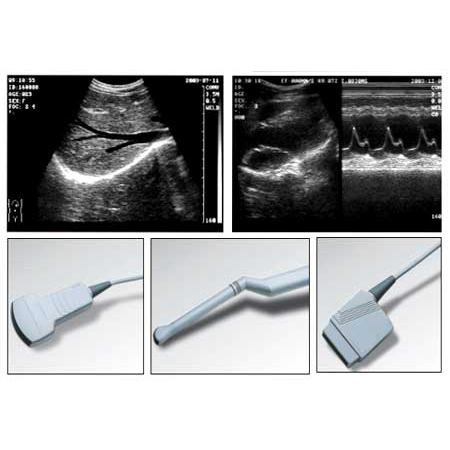

		2.5/3.5/5.0Mhz Convex Probe
Included as Standard Accessories		Grounding Cable (1 PC)
		USB Software CD & Cable(1 PC)
		5.0/6.5/7.5Mhz Trans-Vaginal Probe
Optional at Additional Cost		6.5/7.5/8.5Mhz Linear Probe
		.0/6.5/7.5Mhz Rectal Probe
	:	6.5/7.5/8.5Mhz Endo-Rectal Probe

Specification :

Display Mode : B, B+B, B+M, M
Gray Ccale : 256
Scanning Depth : 220mm
Cline-Loop : 206 frames (max)
Image Magnification : x1.0, x1.2, x1.5, x2.0
Image Storage : Permanent 32 frames
Body Marks : ≥10
Frame Correlation : Selectable 3 levels
Depth Shift : B, B+B real time shift
Resolution : Lateral≤2mm, axial≤1mm
Pseudo Color Processor : 7 colors
Monitor : 7/10 in inches high resolution CRT
Measurement : Distance, area, circumference, volume, heart rate, pregnant week, fetal weight, EDD
Comments : real-time clock, date, scanning depth, model of probes, parameter of frame, correlation, combination of focus, patient ID, gender, age, etc.
Image Conversion : Up/down, right/left, black/white
Local Zoom : 2 in real-time or frozen
Trolley : Option
Video Out : PAL-D, VGA
Video Printer SONY UP897 : (option)
Power Supply : 110/220V, 50/60Hz
Gross Weight : 12.5Kgs, net weight: 10Kgs

• 2.5/3.5/5.0 multi frequency convex/linear array probe (standard)
• 5.0/6.5MHz transvaginal (option)
• 5.0/7.5MHz linear (option)
